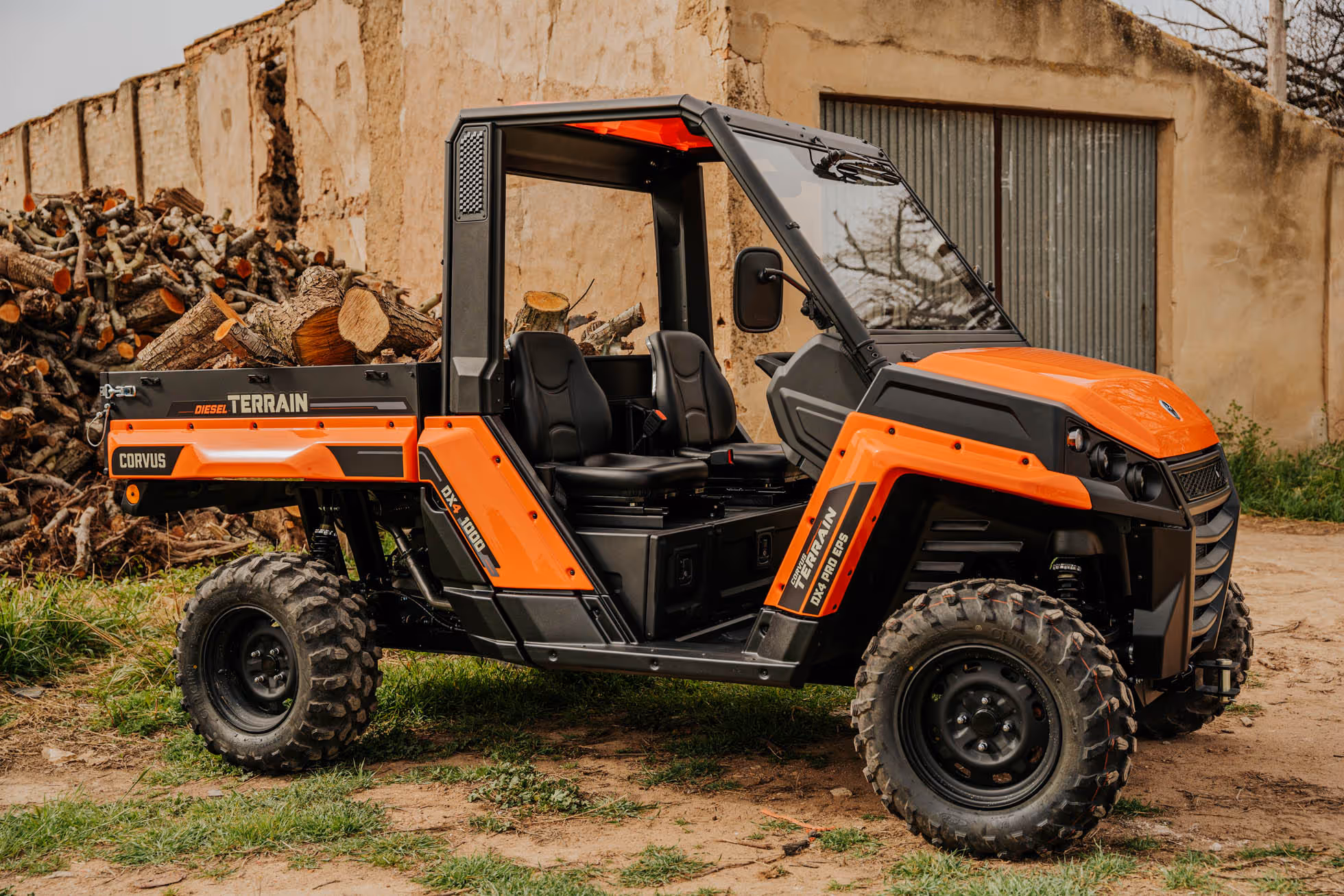

The new TerrainDX4 follows in the tracks of its predecessor, but with improvements that make it undoubtedly superior. A powerful and robust 4×4 diesel vehicle, generous storage and load capacity, fully prepared to excel in farmland, forestry work, stock breeding and maintenance services.

Features

Its 309 mm ground clearance and its shock absorbers with adjustable settings will help you overcome any obstacle.

Quickly activate the 4×4 system at the touch of a button on the dashboard when circumstances demand it.

Lift the front bonnet to quickly access and check the brake, coolant and windscreen wiper fluids.

The new TERRAIN reduces the turning angle and is much more agile. Now you can turn more in less space.

The raised intakes don’t just prevent over-heating, they also make it harder for dust, water and impurities to get into the engine and the CVT.

This system reduces and corrects front suspension sag when you have to brake suddenly.

SPACIOUS & COMFORTABLE CABIN

The ample height and width of the cabin, together with the layout of the dashboard, allow a quick and extensive view of the exterior. In addition, the absence of any obstacles between the seats makes it really easy to get in and out of the vehicle.

TIRELESS WORKER

The new TerrainDX4 uses a normally aspirated, inline 3-cylinder YANMAR diesel engine of 993cc with 24 hp which gives excellent fuel efficiency and range. A powerful work tool in your hands.

NEW ACCESSORIES

The new original CORVUS accessories give you lots of possibilities to multiply the features of your TERRAIN. Find solutions that adapt to your work style and impress with their design and functionality.

MARKET LEADING ONBOARD STORAGE CAPACITY

FRONT TRUNK An added and very practical space to store tools or small packages. Capacity of 45 L or 25 kg.

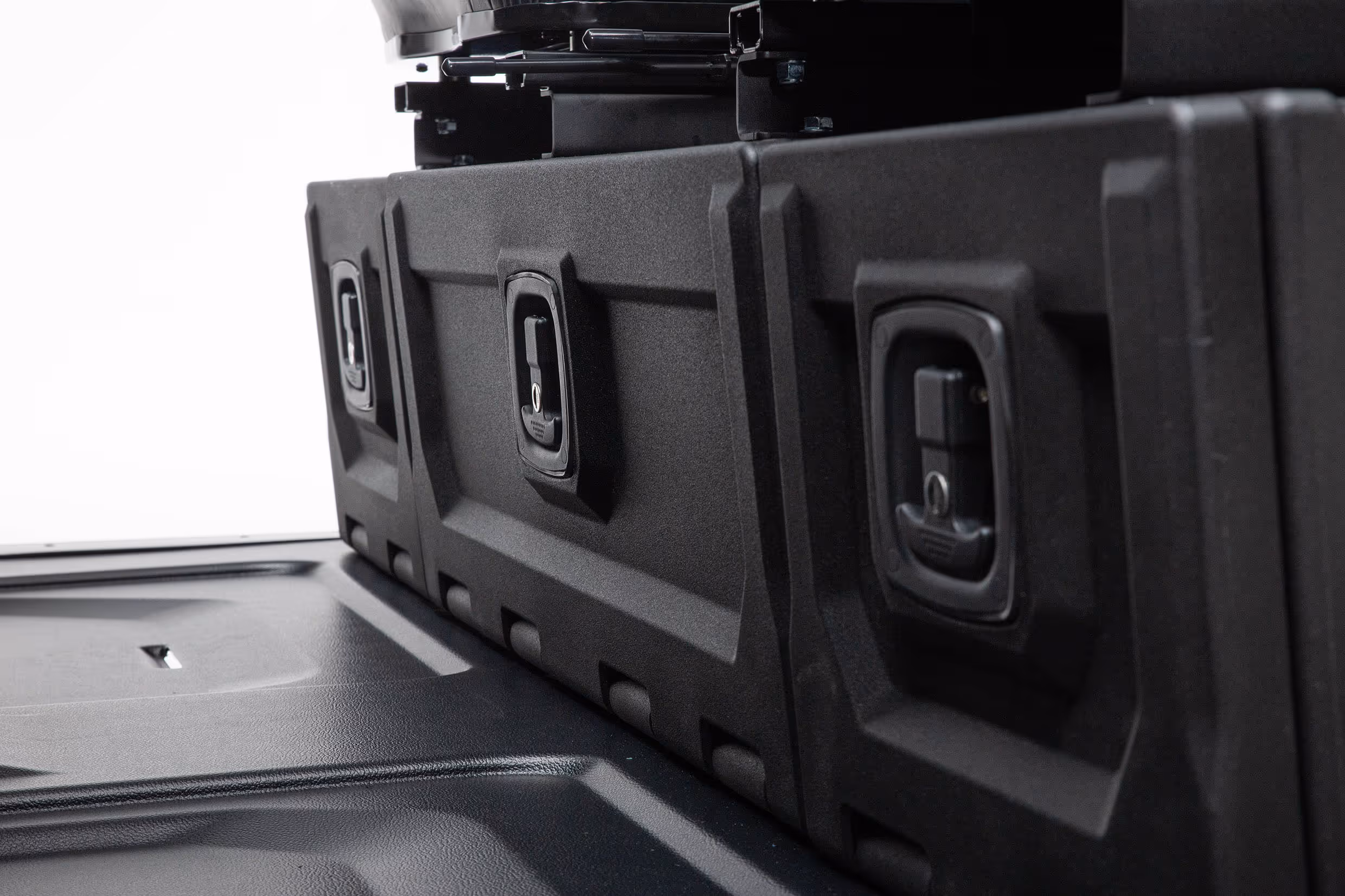

INNER DRAWERS Keep everything you need close at hand and under lock and key with these 3 convenient compartments, located under the seats. Total capacity of 67 L or 30 kg.

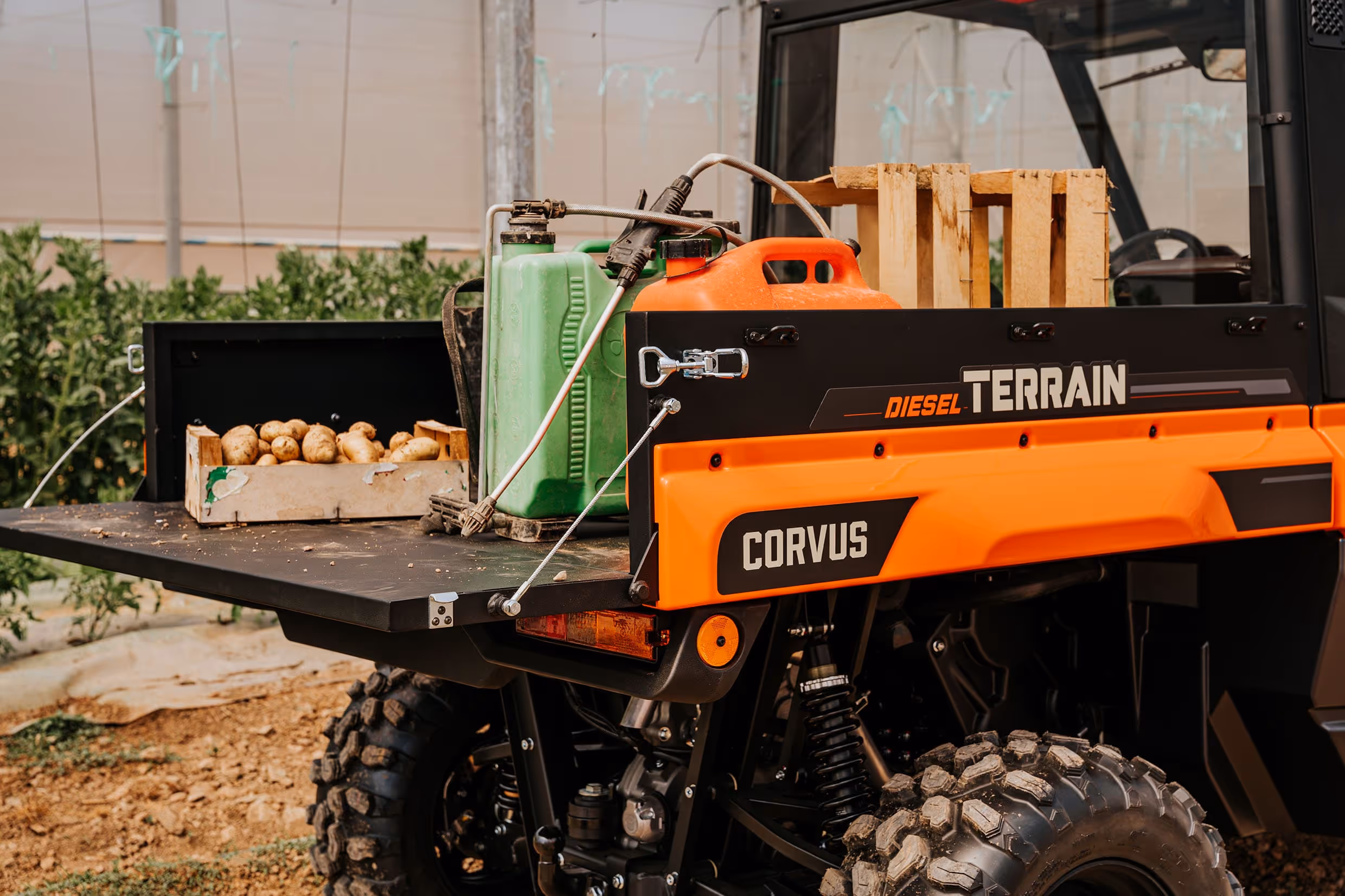

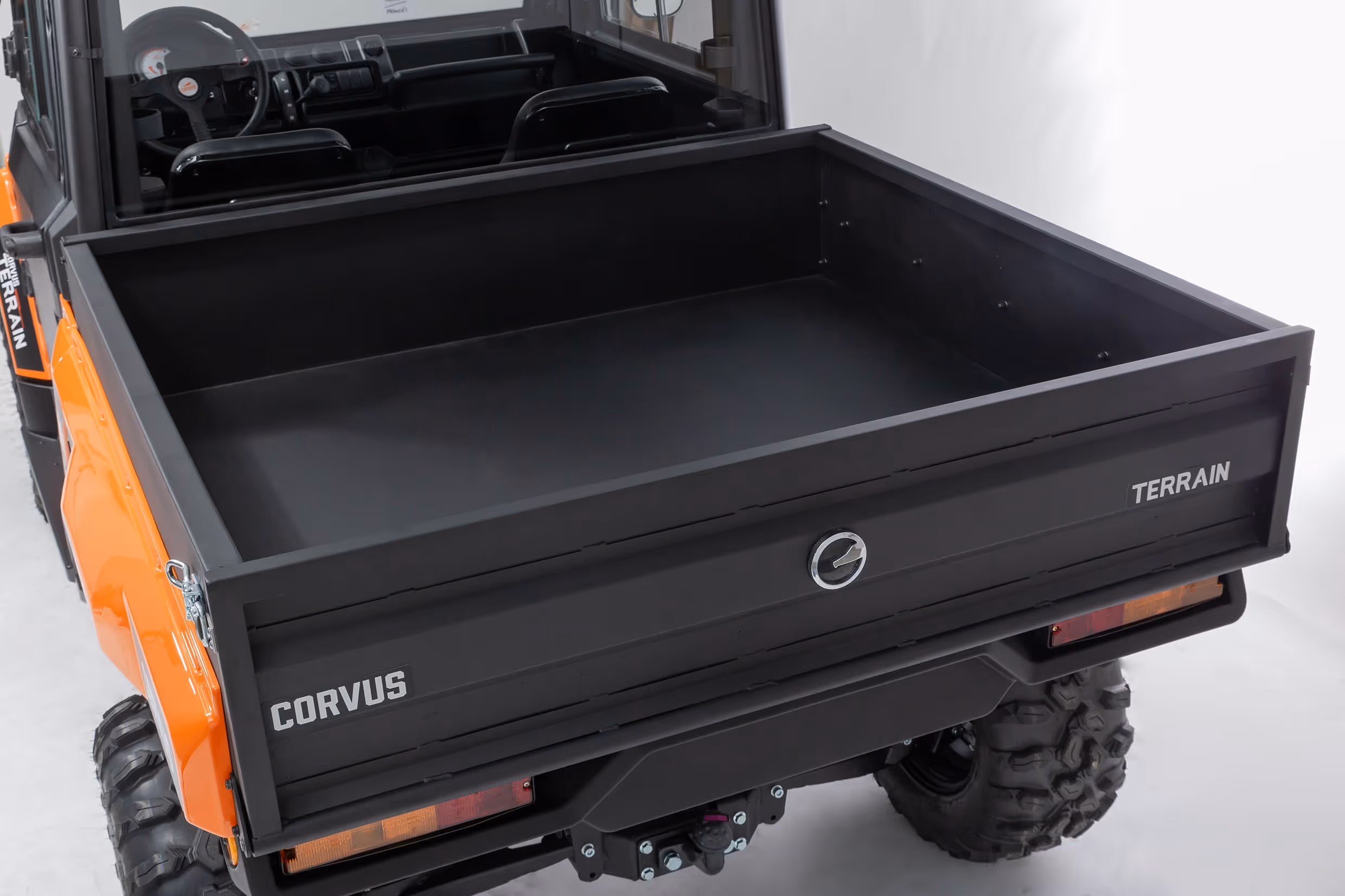

CARGO BOX
The TERRAIN rear box stands out on the market for its dimensions and hardness. May transport up 450 kg stably and safely. A lightweight resistant steel box, and prepared for the installation of accessories and implements.

EQUIPMENT THAT ADAPTS TO YOUR NEEDS

MAKES WORK EVEN EASIER!

The DX4 equipment is designed for anyone looking for a simple vehicle with which to carry out any job comfortably. Fitted as standard with a large and versatile cargo box that allows you to carry everything you need for your working day.

Highlights:

  • Skid plate.
  • Rear differential lock.
  • Front receiver.
  • Tow ball rear.

Type approval: T1a and T1b.

Dimensions

  • L x W x H: 3414 x 1656 x 1973 mm.
  • Ground clearance: 309 mm.
  • Towing capacity: 907 kg.
  • Cargo Box capacity: 450 kg.
  • Fuel capacity: 40 L.

Suspensions

  • Suspensions: Indep. double wishbone. 287 mm travel.
  • Damping: Gas shock-absorbers. Adjustable ride height.
  • Anti-dive system.

Brakes and Tires

  • Front: 256 mm disk brakes with twin-piston calipers.
  • Rear: 220 mm disk brakes with single-piston calipers.
  • Handbrake: Yes, for back wheels and independent calipers.
  • Tires: Front 29×11. Steel rims R14.
  • Tires: Rear 16×11. Steel rims R14.

Engine

  • Yanmar diesel, 3 cylinder, 4 stroke.
  • 993 cc / 24 hp / 18 kw 3600 rpm
  • Water cooling
  • Gearbox: CVT. Clutch L-H-N-R
  • 4WD-2WD with rear differential lock

Features

  • Rigid full doors.
  • Courtesy light.
  • Front storage.
  • Front and rear receiver.

Homologation & Warranty

  • Homologation: Option T1a / T1b.
  • Person capacity: 2 pax.
  • Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
  • Warranty: 2 years CE.

DESIGNED TO SIMPLIFY
YOUR DAY-TO-DAY LIFE

DX4 EPS is synonymous with power and manoeuvrability. The EPS electric steering enhances the vehicle’s steering feel by adding grip and control. The result is a comfortable 4×4 that’s just perfect for getting around large estates or trails.

Highlights:

  • Electric power steering EPS.
  • Front and rear receiver.
  • Cupholders.
  • Adjustable shock-absorbers.

Type approval: T1a and T1b.

Dimensions

  • L x W x H: 3414 x 1656 x 1973 mm.
  • Ground clearance: 309 mm.
  • Towing capacity: 907 kg.
  • Cargo Box capacity: 450 kg.
  • Fuel capacity: 40 L.

Suspensions

  • Suspensions: Indep. double wishbone. 287 mm travel.
  • Damping: Gas shock-absorbers. Adjustable ride height.
  • Anti-dive system.

Brakes and Tires

  • Front: 256 mm disk brakes with twin-piston calipers.
  • Rear: 220 mm disk brakes with single-piston calipers.
  • Handbrake: Yes, for back wheels and independent calipers.
  • Tires: Front 29×11. Steel rims R14.
  • Tires: Rear 16×11. Steel rims R14.

Engine

  • Yanmar diesel, 3 cylinder, 4 stroke.
  • 993 cc / 24 hp / 18 kw 3600 rpm
  • Water cooling
  • Gearbox: CVT. Clutch L-H-N-R
  • 4WD-2WD with rear differential lock

Features

  • Rigid full doors.
  • Courtesy light.
  • Front storage.
  • Front and rear receiver.

Homologation & Warranty

  • Homologation: Option T1a / T1b.
  • Person capacity: 2 pax.
  • Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
  • Warranty: 2 years CE.

AS VERSATILE AS YOUR WORK

The new PRO EPS is all you need for your day-to-day work for any type of work.Adds extra comfort and protectionfrom weather elements such as wind and rain by including front and rear windscreens standard. Maximize storage capacity with under-seat drawers.

Highlights:

  • Windscreen with wash wiper.
  • Under-seat storage: 67 L / 30 kg.
  • Electric power steering EPS.
  • Inner rear view.

Type approval: T1a and T1b.

Dimensions

  • L x W x H: 3414 x 1656 x 1973 mm.
  • Ground clearance: 309 mm.
  • Towing capacity: 907 kg.
  • Cargo Box capacity: 450 kg.
  • Fuel capacity: 40 L.

Suspensions

  • Suspensions: Indep. double wishbone. 287 mm travel.
  • Damping: Gas shock-absorbers. Adjustable ride height.
  • Anti-dive system.

Brakes and Tires

  • Front: 256 mm disk brakes with twin-piston calipers.
  • Rear: 220 mm disk brakes with single-piston calipers.
  • Handbrake: Yes, for back wheels and independent calipers.
  • Tires: Front 29×11. Steel rims R14.
  • Tires: Rear 16×11. Steel rims R14.

Engine

  • Yanmar diesel, 3 cylinder, 4 stroke.
  • 993 cc / 24 hp / 18 kw 3600 rpm
  • Water cooling
  • Gearbox: CVT. Clutch L-H-N-R
  • 4WD-2WD with rear differential lock

Features

  • Rigid full doors.
  • Courtesy light.
  • Front storage.
  • Front and rear receiver.

Homologation & Warranty

  • Homologation: Option T1a / T1b.
  • Person capacity: 2 pax.
  • Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
  • Warranty: 2 years CE.

RISING TO THE OCCASION

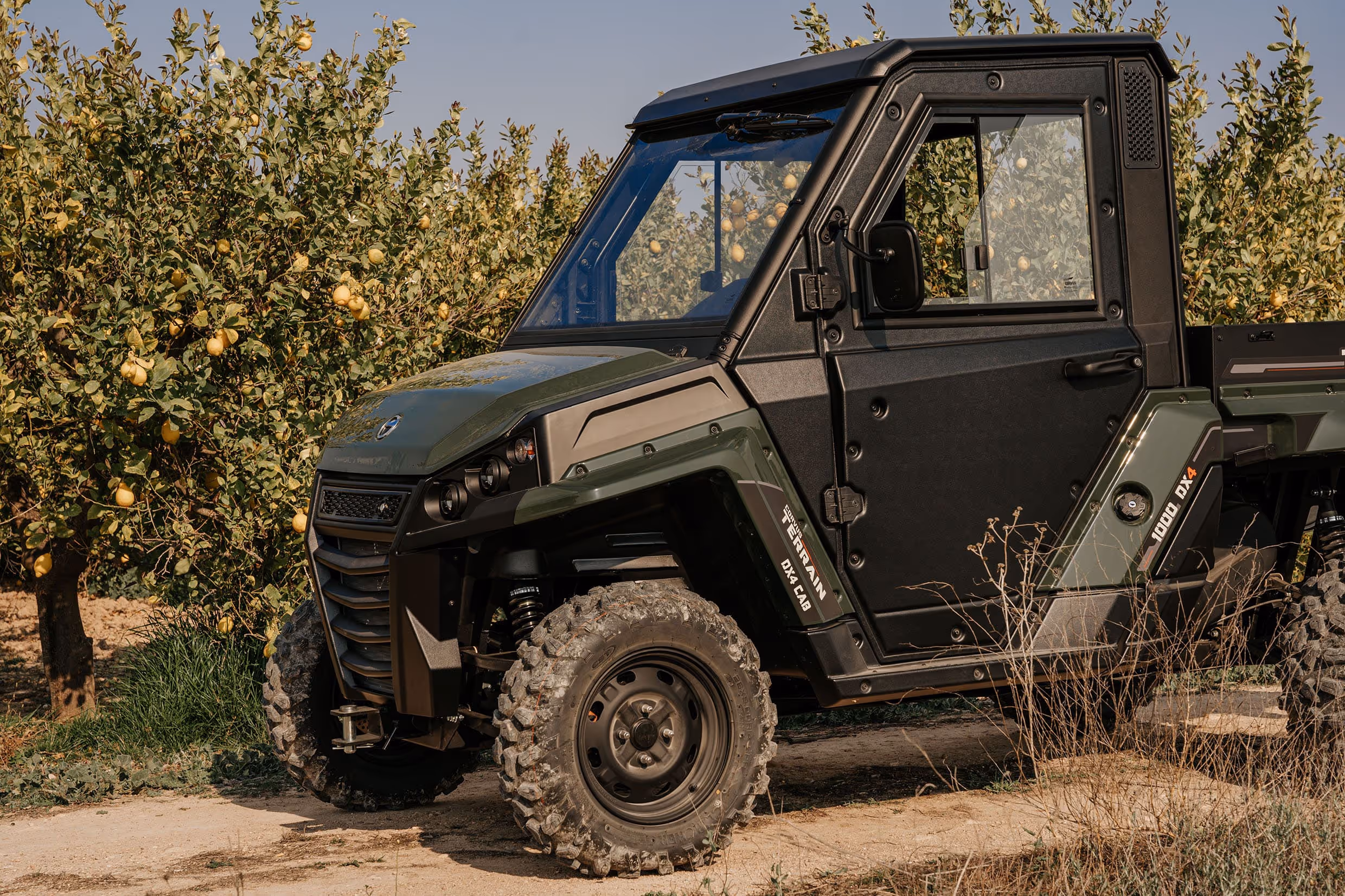

The CAB equipment adds rigid, full-length doors to your TERRAIN to protect you from adverse weather conditions. The result is a spacious and comfortable cabin, fitted with heating to provide you with maximum comfort during your working day.

Highlights:

  • Doors with window.
  • Heater.
  • ADVANCED roof.
  • Front storage.

Type approval: T1a and T1b.

Dimensions

  • L x W x H: 3414 x 1656 x 1973 mm.
  • Ground clearance: 309 mm.
  • Towing capacity: 907 kg.
  • Cargo Box capacity: 450 kg.
  • Fuel capacity: 40 L.

Suspensions

  • Suspensions: Indep. double wishbone. 287 mm travel.
  • Damping: Gas shock-absorbers. Adjustable ride height.
  • Anti-dive system.

Brakes and Tires

  • Front: 256 mm disk brakes with twin-piston calipers.
  • Rear: 220 mm disk brakes with single-piston calipers.
  • Handbrake: Yes, for back wheels and independent calipers.
  • Tires: Front 29×11. Steel rims R14.
  • Tires: Rear 16×11. Steel rims R14.

Engine

  • Yanmar diesel, 3 cylinder, 4 stroke.
  • 993 cc / 24 hp / 18 kw 3600 rpm
  • Water cooling
  • Gearbox: CVT. Clutch L-H-N-R
  • 4WD-2WD with rear differential lock

Features

  • Rigid full doors.
  • Courtesy light.
  • Front storage.
  • Front and rear receiver.

Homologation & Warranty

  • Homologation: Option T1a / T1b.
  • Person capacity: 2 pax.
  • Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
  • Warranty: 2 years CE.

HIGH LEVEL OF EQUIPMENT

The DX4 CAB CLIMA is the most equipped version of the TERRAIN range, and is specially designed to work hard in extreme conditions. Perform the toughest work under any conditions, thanks to the air conditioning and heating system.

Highlights:

  • HVAC and Heater system.
  • Courtesy light.
  • Front insulation panel.
  • Sist. front and rear hitch.

Type approval: T1a and T1b.

Dimensions

  • L x W x H: 3414 x 1656 x 1973 mm.
  • Ground clearance: 309 mm.
  • Towing capacity: 907 kg.
  • Cargo Box capacity: 450 kg.
  • Fuel capacity: 40 L.

Suspensions

  • Suspensions: Indep. double wishbone. 287 mm travel.
  • Damping: Gas shock-absorbers. Adjustable ride height.
  • Anti-dive system.

Brakes and Tires

  • Front: 256 mm disk brakes with twin-piston calipers.
  • Rear: 220 mm disk brakes with single-piston calipers.
  • Handbrake: Yes, for back wheels and independent calipers.
  • Tires: Front 29×11. Steel rims R14.
  • Tires: Rear 16×11. Steel rims R14.

Engine

  • Yanmar diesel, 3 cylinder, 4 stroke.
  • 993 cc / 24 hp / 18 kw 3600 rpm
  • Water cooling
  • Gearbox: CVT. Clutch L-H-N-R
  • 4WD-2WD with rear differential lock

Features

  • Rigid full doors.
  • Courtesy light.
  • Front storage.
  • Front and rear receiver.

Homologation & Warranty

  • Homologation: Option T1a / T1b.
  • Person capacity: 2 pax.
  • Max speed EU: T1a: 40 km/h – T1b: 60 km/h.
  • Warranty: 2 years CE.
