DOES EVERYTHING YOU NEED AND MORE

Available in both Extended and Double Cab, as well as manual or automatic transmission, it’s not just about what the D-Max DL20 does, but the way it goes about it. Across track, field, construction site and on road, the ruggedly efficient Euro 6D compliant diesel engine, producing 164PS and 360Nm of torque, packs enough power to carry a one tonne payload or tow 3.5 tonnes effortlessly.

The rear diff-lock and ‘shift-on-the-fly’ 4WD system help the driver keep control whatever the terrain. Plus, there’s a whole host of smart features that make DL20 the workmate that has your back.
fleetnews award logo
trade van driver 2023 awards logo
business vans 2023 winner logo
company car and van logo 2023
what van 2023 awards winner logo

Features

Exterior
Entertainment
Comfort & Convenience
Safety & Security
Interior
  • Automatic Headlights with High Beam Assist
  • 18" Alloy Wheels
  • Full Size Spare Wheel
  • Front Fog Lights
  • Tailgate Damper
  • Body Coloured Front Bumper
  • Body Coloured Rear Bumper with Integrated Step
  • DAB Radio
  • Bluetooth® Connectivity
  • CD Player
  • USB Ports
  • Four Speakers
  • Remote Control Central Locking
  • Manual Air Conditioning
  • Height & Reach Adjustable Steering Wheel
  • Steering Wheel Mounted Audio & Cruise Controls
  • Follow Me Home Light
  • 4.2" Multi-Information Display
  • Advanced Driver Assist Systems (ADAS)
  • Rear Differential Lock
  • Cruise Control
  • Rear Parking Sensors
  • Hill Start Assist & Hill Descent Control
  • Speed Sensitive Power Steering
  • Cloth Upholstery
  • Heated Front Seats
  • Driver's Seat Lumbar Support
  • Front Centre Armrest
  • Height Adjustable Seats
  • Driver's Foot Rest
  • Carpet Floor Trim

Colour & Cab Options

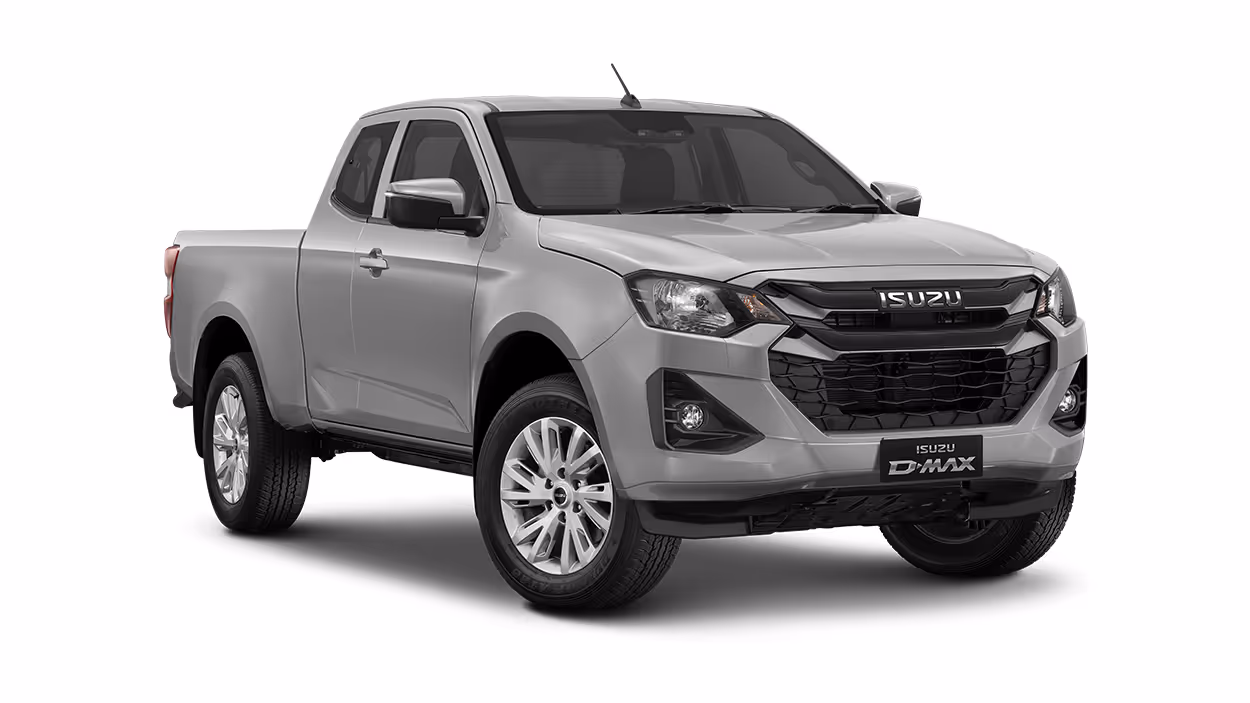

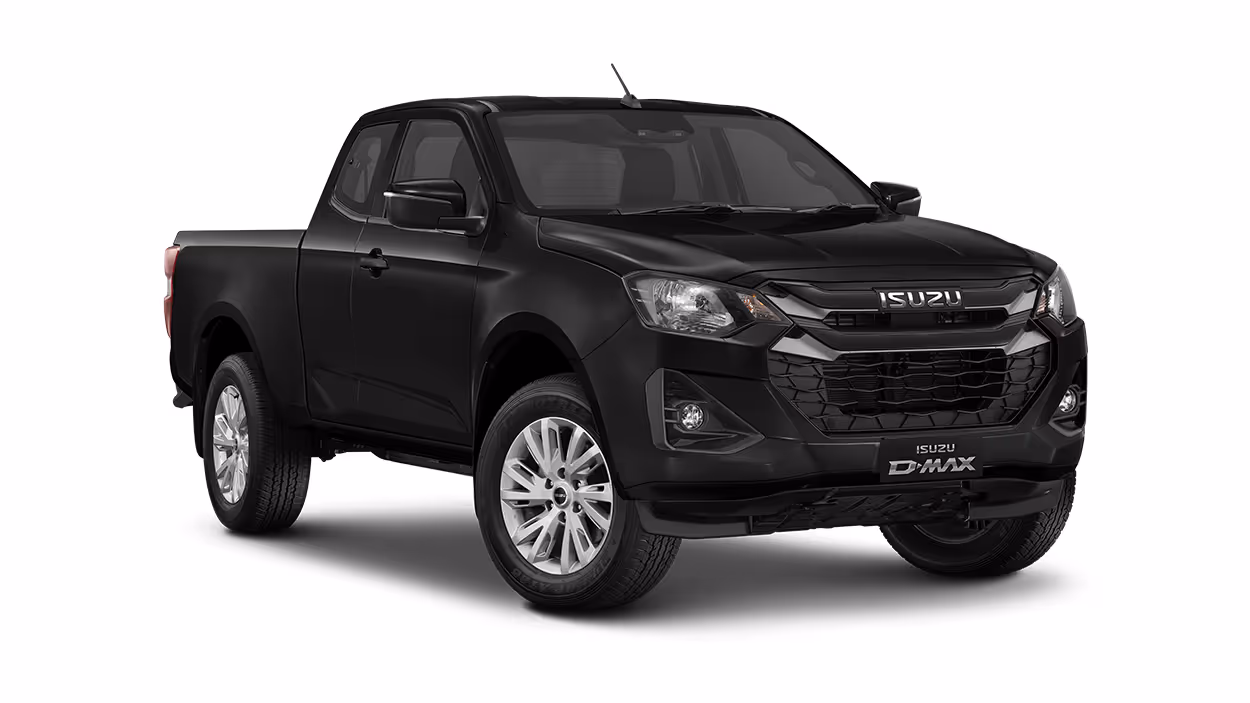

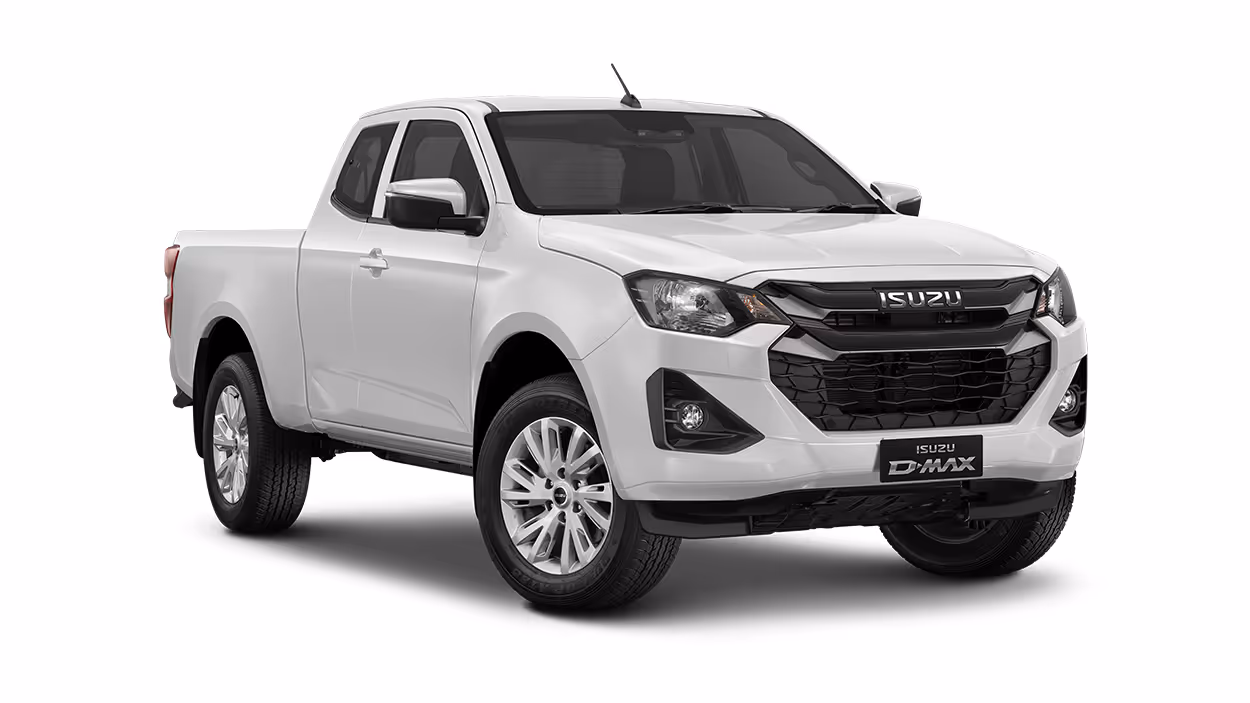

EXtended Cab

Splash
White
Mercury
Silver
Obsidian
Grey
Onyx
Black
SPINEL
red
The extended cab offers the second largest load bed, at a length of 1805mm, and adds the flexibility to carry two additional passengers on folding rear seats.

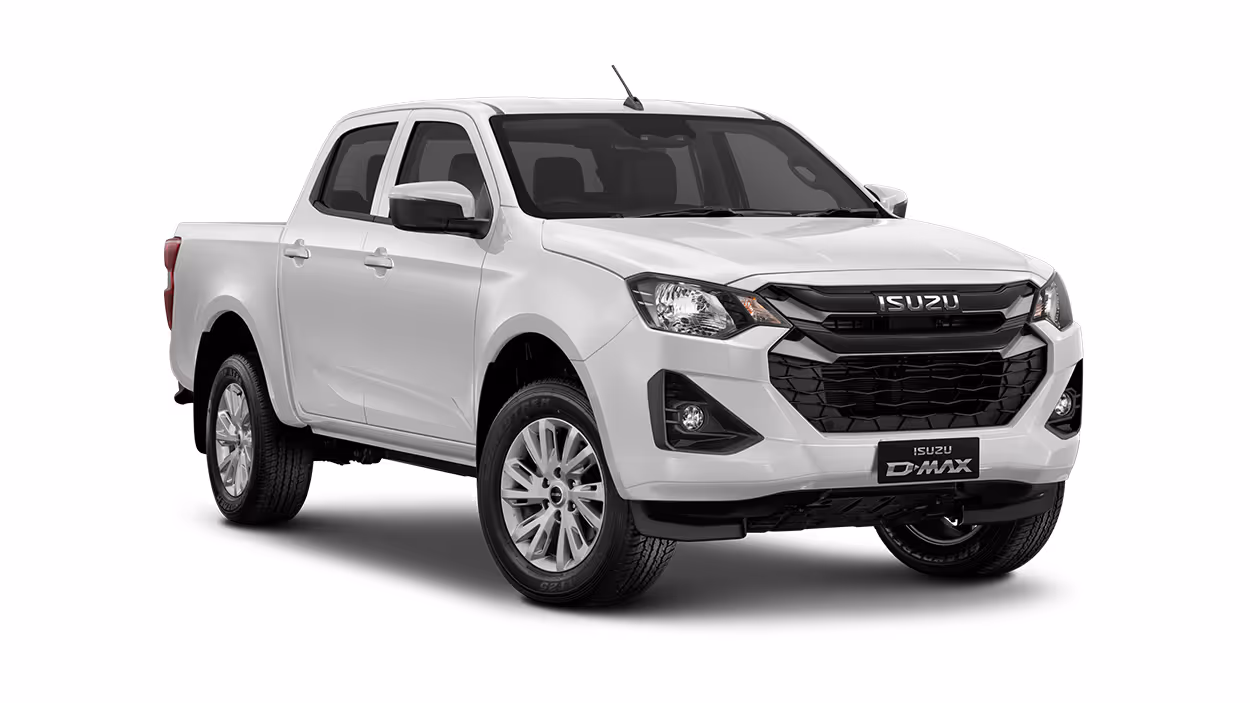

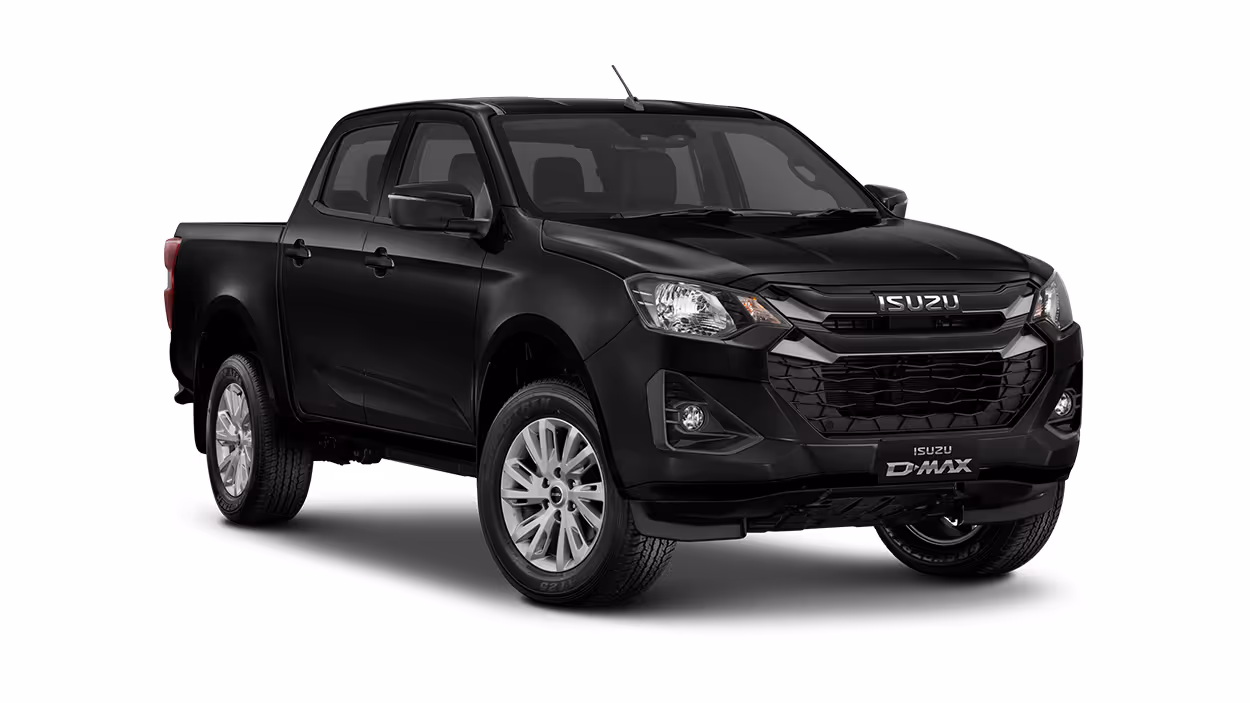

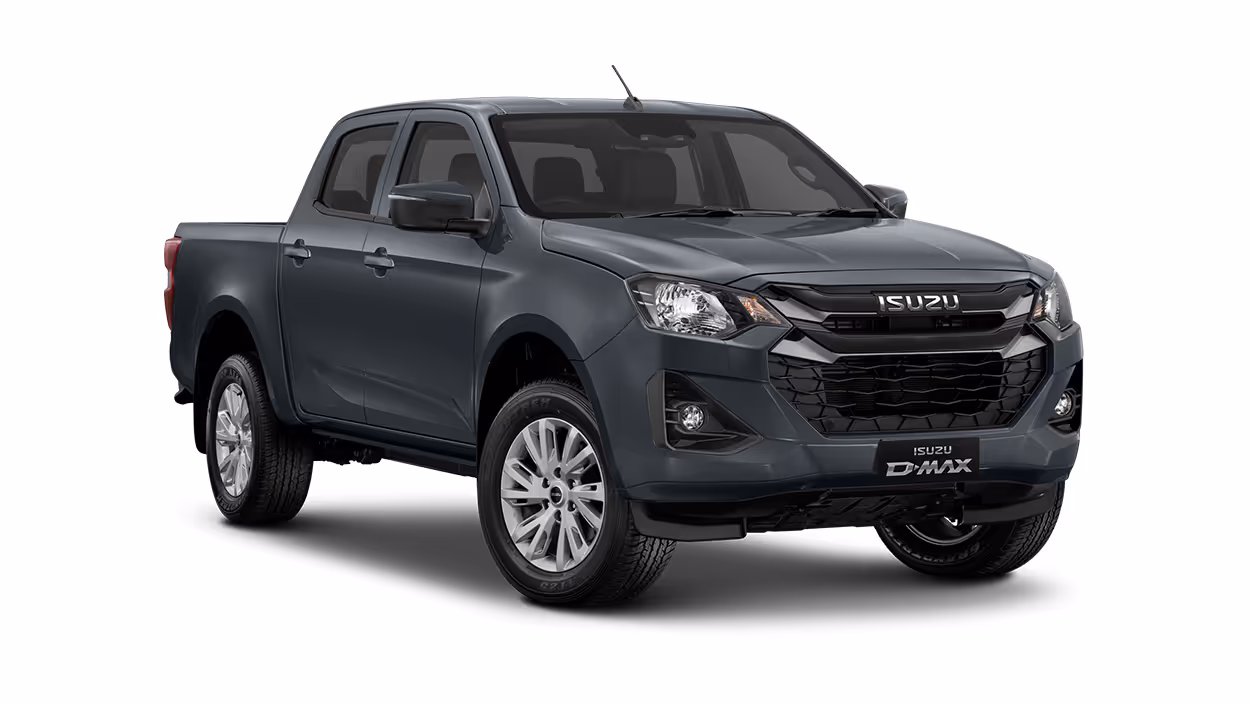

double Cab

Splash
White
Mercury
Silver
Obsidian
Grey
Onyx
Black
spinel
red
Our most versatile cab type seats two passengers in the front and three in the back. The standard size load bed will accommodate all of your tools and rear ISOFIX points mean it works as well for family use as it does for your business.

The D-Max Difference

Smarter

Blending style with substance, the Isuzu D-Max provides a premium yet practical interior that puts you and your passengers comfort first.

Stronger

The All-New Isuzu D-Max has a powerful presence, with unquestionable Isuzu workhorse DNA.
  • Strengthened ladder chassis
  • Extensive underbody protection
  • Faster engaging shift-on-the-fly 4WD system
  • Rear diff-lock*
  • 800mm wading depth
*Standard on All-Purpose and Adventure Models

Safer

Safer and more robust than ever featuring the comprehensive ADAS (Advanced Driver Assist Systems) package. With more airbags than ever before and new E-Call system, there's no surprise the D-Max has been awarded the maximum 5 stars in Euro NCAP testing.
CONTACT US TO ARRANGE A TEST DRIVE
contact

dimensionS & specification

Equipment
Specification
Pricing
Colours
Exterior
Wheels
Interior
Entertainment
Comfort & Convenience
Climate Control
Advanced Driver Assist Systems*3
Safety & Security
Exterior
Extended Cab
Double Cab
Halogen Headlights
Standard
Standard
Halogen Daytime Running Lights
Standard
Standard
Automatic Headlights
Standard
Standard
High Beam Assist
Standard
Standard
Halogen Front Fog Lights
Standard
Standard
Rear Fog Lights
Standard
Standard
Automatic Windscreen Wipers with Rain Sensor
Standard
Standard
Heated Rear Screen
Standard
Standard
Medium Grey Radiator Grille
Standard
Standard
Body Coloured Front Bumper
Standard
Standard
Body Coloured Rear Bumper with Integrated Step
Standard
Standard
Folding, Heated, Body-Colour Door Mirrors with Side Indicator Repeaters
Standard
Standard
Silver Door Handles
Standard
Standard
Integrated Fuel Filler Cap with AdBlue
Standard
Standard
Tailgate Damper
Standard
Standard
Wheels
Extended Cab
Double Cab
18" Alloy Wheels - Silver
Standard
Standard
Locking Wheel Nuts
Standard
Standard
Full Size Spare Wheel - Steel
No cost option
No cost option
Interior
Extended Cab
Double Cab
Cloth Upholstery
Standard
Standard
6-Way Adjustable Driver's Seat (Manual)
Standard
Standard
Driver's Seat Lumbar Support (Manual)
Standard
Not Available
Driver's Seat Lumbar Support (Power)
Not Available
Standard
Heated Front Seats
Standard
Standard
Front Seatback Map Pockets
Standard
Standard
Flat Folding Rear Seats
Not Available
Standard
60/40 Folding Seat Base
Not Available
Standard
Under Seat Base Storage
Standard
Standard
Height Adjustable Front Headrests
Standard
Standard
Height Adjustable Rear Headrests
Not Available
Standard
Front Centre Armrest
Standard
Standard
Front Cup Holders (Centre Console & Dash - Driver & Passenger Sides)
Standard
Standard
Front Door Pockets with Bottle Holder
Standard
Standard
Rear Centre Armrest with Cup Holders
Not Available
Standard
Rear Door Pockets with Bottle Holder
Not Available
Standard
Leather Steering Wheel
Not Available
Standard
Carpet Floor Trim
Standard
Standard
Driver's Foot Rest
Standard
Standard
Entertainment
Extended Cab
Double Cab
Bluetooth¨ Connectivity
Standard
Standard
DAB Radio
Standard
Standard
CD Player
Standard
Standard
Four Speakers
Standard
Standard
Front USB Port
Standard
Standard
Rear USB Port
Not Available
Standard
Comfort & Convenience
Extended Cab
Double Cab
Remote Control Central Locking
Standard
Standard
Follow Me Home Light
Standard
Standard
Power Windows (Front Only)*2
Standard
Not Available
Power Windows (Front & Rear)*2
Not Available
Standard
Sun Glass Holder & Overhead Console
Standard
Standard
Map Lights
Standard
Standard
Driver & Passenger Sun Visors
Standard
Standard
Height and Reach Adjustable Steering Wheel
Standard
Standard
Steering Wheel Mounted Audio & Cruise Controls
Standard
Standard
12-Volt Power Outlet
Standard
Standard
Gear Shift Indicator (Manual Only)
Standard
Standard
4.2" Multi-Information Display
Standard
Standard
*2 Driver side has auto up/down function, with pinch protection and timer.
Climate Control
Extended Cab
Double Cab
Manual Air Conditioning
Standard
Standard
Rear Heating Ducts
Standard
Standard
Advanced Driver Assist Systems*3
Extended Cab
Double Cab
Cruise Control
Standard
Standard
Adaptive Cruise Control (Auto only)
Not Available
Standard
Forward Collision Warning
Standard
Standard
Autonomous Emergency Braking
Standard
Standard
Traffic Sign Recognition
Standard
Standard
Intelligent Speed Limiter*4
Standard
Standard
Lane Departure Warning & Prevention System
Standard
Standard
Lane Keep Assist (Auto only)
Not Available
Standard
AT Pedal Misapplication Mitigation (Auto only)
Not Available
Standard
Blind Spot Monitor
Not Available
Standard
Emergency Lane Keeping
Not Available
Standard
Rear Cross Traffic Alert
Not Available
Standard
*3 ADAS are driving support systems which may not operate optimally under all driving conditions or for all objects. The driver is always responsible for safe and attentive driving and observance of traffic regulations. See Owner’s Manual for complete details on system operation and limitations.
*4 Manual & Intelligent Speed Limiter.
Safety & Security
Extended Cab
Double Cab
Rear Parking Sensors
Standard
Standard
Rear Differential Lock
Standard
Standard
4WD Shift On The Fly
Standard
Standard
Speed-Sensitive Power Steering
Standard
Standard
ESC (Electronic Stability Control)
Standard
Standard
Traction Control
Standard
Standard
Trailer Sway Control
Standard
Standard
ABS (Anti-Lock Braking System)
Standard
Standard
EBD (Electronic Brakeforce Distribution)
Standard
Standard
Brake Assist System
Standard
Standard
Hill Start Assist
Standard
Standard
Hill Descent Control
Standard
Standard
E-Call
Standard
Standard
Multi-Collision Brake
Standard
Standard
Security Etched Glass
Standard
Standard
Insurance Approved Immobiliser
Standard
Standard
Alarm with Deadlock
Standard
Standard
Front, Side, Curtain & Driver Knee SRS Airbags*5
Standard
Standard
Centre SRS Airbag*5
Not Available
Standard
Passenger Airbag Deactivation Switch
Standard
Standard
Height Adjustable Front Seatbelts with Pretensioner & Load Limiter
Standard
Standard
2 x Three-Point Rear Seatbelts (Side)
Standard
Not Available
3 x Three-Point Rear Seatbelts (Side & Centre)
Not Available
Standard
ISOFIX Child Seat Anchors with Top Tether Anchors (2 x Rear Side)
Not Available
Standard
Rear Door Child Locks
Not Available
Standard
Seatbelt Reminder Indicator (All Seating Positions)
Standard
Standard
Door Open Warning Light
Standard
Standard
Stop & Start System*6
Standard
Standard
*5 SRS: Supplemental Restraint System.  Must be used in conjunction with seatbelts.
*6 According to conditions, the Stop & Start system will automatically stop and restart the engine when the vehicle comes to a standstill to reduce fuel consumption and emissions.
Engine
Gear Ratios
Performance
Fuel Consumption WLTP (MGP)*1
Dimensions
Load Bed Dimensions
Weights
Wheels & Tyres
Insurance Groups
Engine
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Engine Type
RZ4E
RZ4E
RZ4E
Fuel Type
Diesel
Diesel
Diesel
Arrangement Cylinders
4, In line
4, In line
4, In line
Firing Order
1-3-4-2
1-3-4-2
1-3-4-2
Bore mm
80
80
80
Stroke mm
94.4
94.4
94.4
Compression
15.9
15.9
15.9
Engine Capacity cm3
1898
1898
1898
Idle Speed
750+/- 25
750+/- 25
750+/- 25
Fuel Tank Capacity Litres
76
76
76
Gear Ratios
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
1
4.942
4.942
3.6
2
2.452
2.452
2.09
3
1.428
1.428
1.488
4
1
1
1
5
0.749
0.749
0.687
6
0.634
0.634
0.58
Reverse
4.597
4.597
3.732
Final Drive
4.3
4.3
4.3
Performance
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Net Power PS @ rpm
164 @ 3600
164 @ 3600
164 @ 3600
Torque Nm @ rpm
360 @ 2000 - 2500
360 @ 2000 - 2500
360 @ 2000 - 2500
Maximum Speed (mph)
112
112
112
Acceleration (0-62mph) sec
12.7
12.7
13
Fuel Consumption WLTP (MPG)*1
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Low
27.6
27.6
25.1
Mid
36.4
36.4
31.4
High
39.4
39.4
36
Extra-High
30.8
30.8
29
Combined
33.6
33.6
30.7
CO2 emissions g/km
220
220
241
Emissions Class
Euro 6D
Euro 6D
Euro 6D
*1 MPG figures are EU test figures for comparative purposes and may not reflect real driving results.  There is a new WLTP test used for fuel consumption and CO2 figures.  The fuel consumption and CO2 emissions shown are based on the WLTP testing method.  Only compare fuel consumption and CO2 figures with other vehicles tested to the same technical standard.  The fuel consumption you achieve in real life conditions and CO2 produced will depend upon a number of factors including accessories fitted (post-registration), variations in weather, driving styles and vehicle load etc.
Dimensions
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Length mm
5265
5265
5265
Width mm
1870
1870
1870
Height mm
1790
1790
1790
Front Overhang mm
890
890
890
Rear Overhang mm
1250
1250
1250
Wheelbase mm
3125
3125
3125
Track (Front & Rear) mm
1570
1570
1570
Ground Clearance mm (Rear Axle)
235
235
235
Approach Angle (deg.)
31
31
31
Departure Angle (deg.)
24
24
24
Ramp Angle (deg.)
22
22
22
Load Bed Dimensions
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Length mm
1805
1495
1495
Width mm
1530
1530
1530
Depth mm
490
490
490
Weights
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Kerb Weight kg
1952
1980
2010
Gross Vehicle Weight kg
3100
3100
3100
Payload*2 kg
1148
1120
1090
Max Front Axle kg
1450
1450
1450
Max Rear Axle kg
1910
1910
1910
Trailer Weight Braked kg
3500
3500
3500
Trailer Weight Unbraked kg
750
750
750
Nose Weight kg
245
245
245
Gross Train Weight kg
6000
6000
6000
*2 Maximum payload capacity as defined by HM Revenue and Customs for VAT purposes.
Payload is gross vehicle weight minus kerb weight.  Kerb weights quoted are for vehicles with standard specification.  Kerb weight and payload may be influenced by badge level, factory options and dealer fitted accessories.  It is the responsibility of the vehicle operator to ensure their vehicle is legally compliant for road use.
Wheels & Tyres
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Tyres
265/60R18
265/60R18
265/60R18
Wheels
18x7.5 J
18x7.5 J
18x7.5 J
4x2 Single Cab
4x4 Single Cab
Extended Cab
Insurance Group
44D
43D
44D
Prices
Special Paint Finishes
Prices
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Basic Retail
£29,074.00
£29,824.00
£31,324.00
Delivery to Dealer Premises & No. Plates UK Mainland only (Excl. VAT)
£700.00
£700.00
£700.00
12 Months RFL (VAT Exempt)
£320.00
£320.00
£320.00
DVLA First Registration Fee (VAT Exempt)
£55.00
£55.00
£55.00
CVOTR*1 (Excl. VAT) (Excl. VAT)
£30,149.00
£30,899.00
£32,399.00
VAT 20%
£5,954.80
£6,104.80
£6,040.80
Total On The Road Price (Inc. VAT)
£36,103.80
£37,003.80
£38,803.80
*1 Commercial Vehicle On The Road Price
4x4 Extended Cab
4x4 Double Cab
4x4 Double Cab (Auto)
Basic Retail
£500
£500
£500
CVOTR*1
£500
£500
£500
VAT
£100
£100
£100
Total On The Road Price
£600
£600
£600
*Commercial Vehicle On The Road Price
(No charge for Splash White on all models)
Colours
Extended Cab
Double Cab
Splash White
Available
Available
Mercury Silver Met
Available
Available
Obsidian Grey Mica
Available
Available
Onyx Black Mica
Available
Available
Spinel Red Mica
Available
Available
Sapphire Blue Mica
Not Available
Not Available
Valencia Orange Met
Not Available
Not Available
Pearl White
Not Available
Not Available
(No charge for Splash White on all models)

The New Isuzu D-Max Range

Isuzu pick up professionals David Taylor garages
David Taylor garages awards
2020 Isuzu Dealer of the Year
David Taylor garages awards
2021 New Vehicles Sales Dealer of the Year
David Taylor garages awards
2022 + 2021 Regional Dealer of the Year (South)
David Taylor garages awards
2022 + 2021 Finance Dealer of the Year
NEW ISUZU
APPROVED USED
VEHICLES
SERVICE, PARTS
& REPAIR
FINANCE &
OFFERS
SELF & CARAVAN
STORAGE
COMMERCIAL
UNITS
WHY BUY FROM
DTG?
ABOUT US
